How to set up a React app heatmap with PostHog

Mar 07, 2023

Posted by

On this page

Understanding where users click your site or app shows you what interests them. A heatmap can visualize these clicks to make this analysis easier.

Setting up a heatmap for a React app with PostHog is simple. This tutorial will walk through setting up a basic React app, adding PostHog, accessing the heatmap, and customizing the heatmap to your needs.

Creating a basic React app

First, install Node, then create a React app in your terminal, and name it whatever (we name ours heatmap).

Terminal
npx create-react-app heatmap

Next, in src/App.js, replace the existing code with buttons, inputs, and links we can click like this:

JavaScript
// src/App.js
function App() {
  return (
    <div className="App">
      <h1>React Heatmap</h1>
      <button>Click me</button>
      <input type="text" />
      <a href="https://www.posthog.com">Go to PostHog</a>
    </div>
  );
}


export default App;

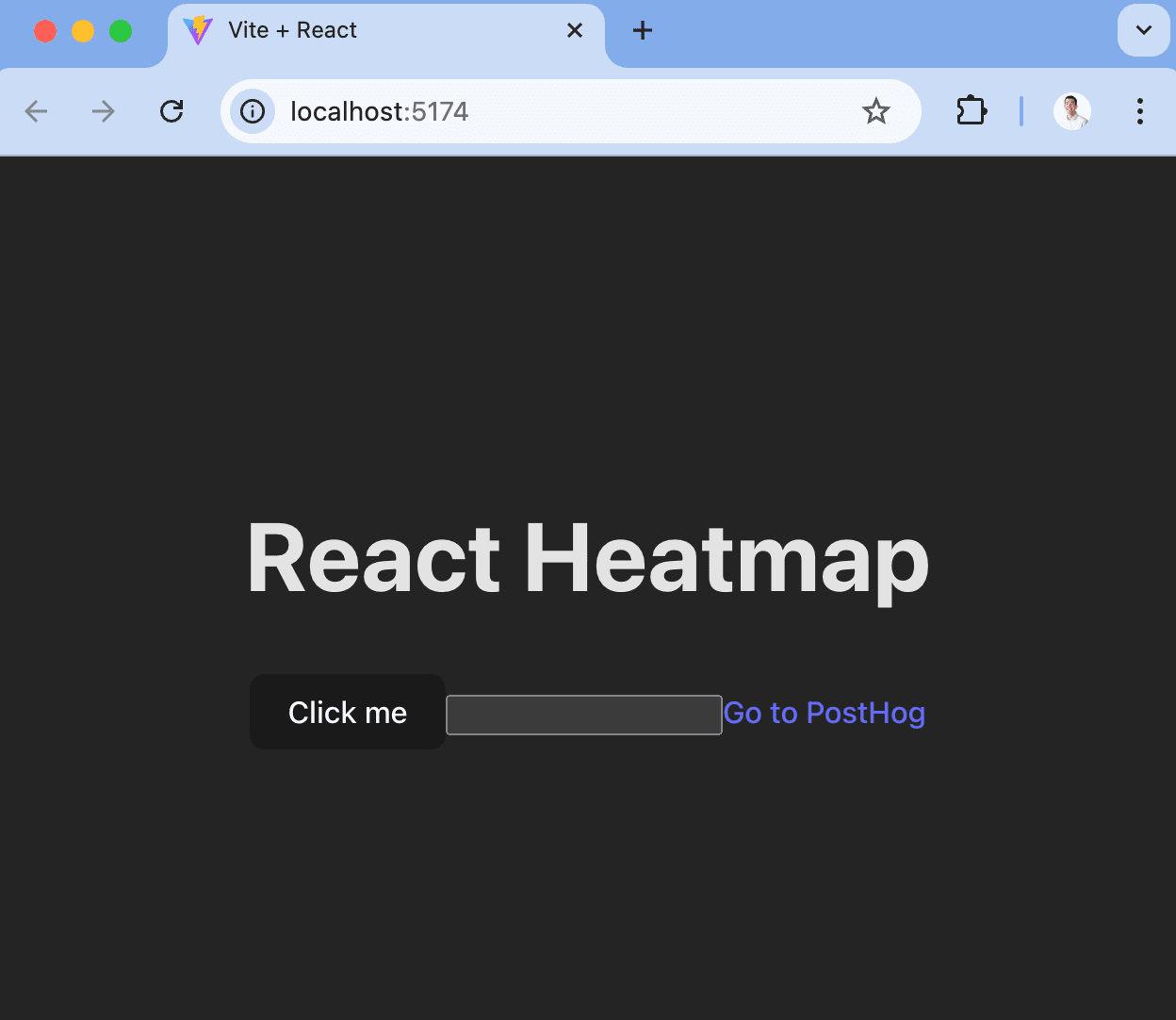

When we go into the app folder and run npm start, this gives us a basic React app which we can use to test PostHog’s heatmap functionality.

App

Adding PostHog

Next, we will add PostHog to your React app. This requires a PostHog instance to do (sign up for free). Once you have a PostHog instance, go back to your terminal and install posthog-js:

Terminal
npm i posthog-js

After installing, go to src/index.js and set up the PostHog provider. To do this:

  1. import posthog from posthog-js and the PostHogProvider from posthog-js/react
  2. initialize posthog with the details from your instance
  3. wrap your App component in the PostHogProvider with the initialized posthog as a client property
JavaScript
// src/index.js
import React from 'react';
import ReactDOM from 'react-dom/client';
import App from './App';
import posthog from 'posthog-js';
import { PostHogProvider} from 'posthog-js/react'


posthog.init(
  '<ph_project_api_key>',
  {
    api_host: https://us.i.posthog.com,
  }
);


const root = ReactDOM.createRoot(document.getElementById('root'));
root.render(
  <React.StrictMode>
    <PostHogProvider client={posthog}>
      <App />
    </PostHogProvider>
  </React.StrictMode>
);

Once done, reload your app, click the button, enter some text into the input, and click the link. You should see events for these in your PostHog instance.

Events

Launching your toolbar to access the heatmap

With our React app and PostHog set up as well as some data, we can get a heatmap of this data using the toolbar.

Click the "Launch Toolbar" tab on the left menu, then add localhost:3000 (or whatever domain you are using) to the authorized URL, and click "Launch." This takes you to your site with the PostHog toolbar active.

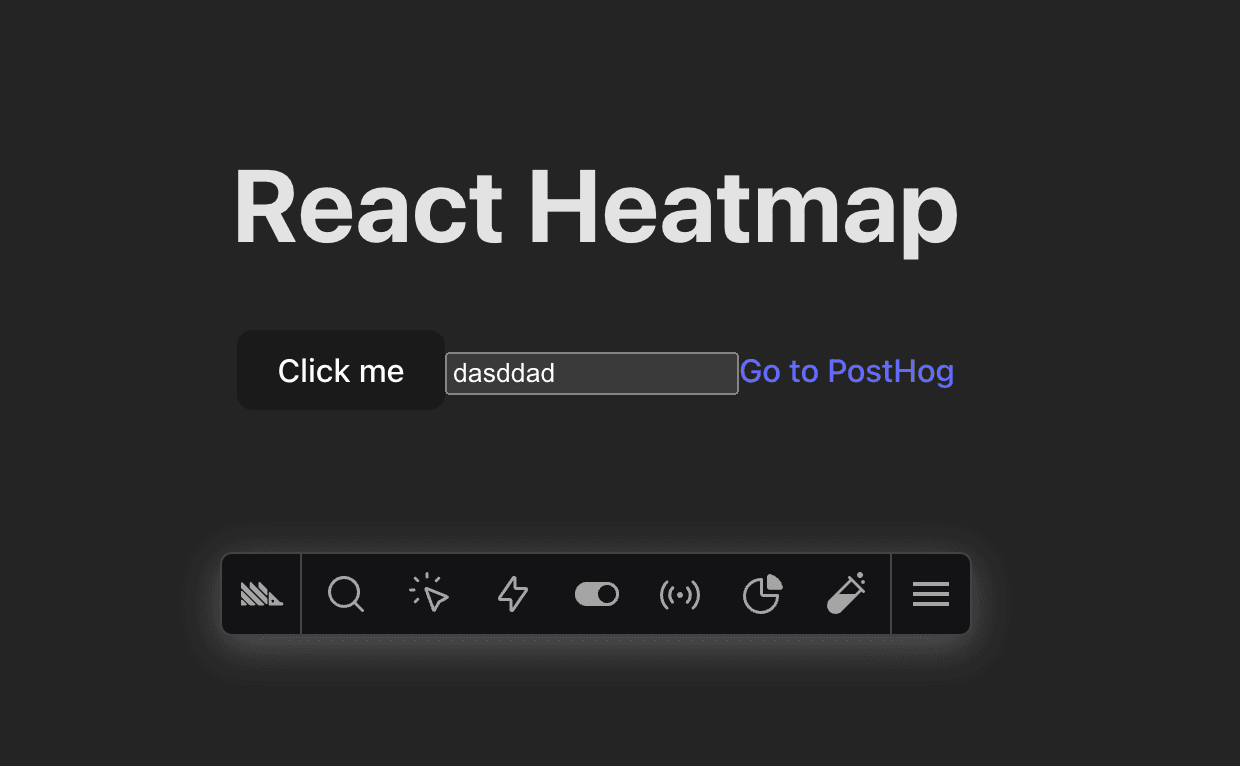

Toolbar

To activate the heatmap, click the heatmap icon in the toolbar. This highlights the elements users are clicking on in your React app.

Heatmap

Understanding the heatmap

With the heatmap open, you see elements highlighted in shades of yellow to red. Here’s what the numbers mean:

  • The numbers over the elements are how many times they were clicked over the last 7 days.
  • The number next to the 😡 emoji is the number of rage clicks for that element.

When you click an element, you get a modal with different options:

  1. Details about the selected option, like its text and DOM location.
  2. Stats including clicks and ranking of most clicked on the page.
  3. The ability to create an action.

Changing the heatmap settings

You can also change the settings for your heatmap by using the menu that appears when you click the heatmap icon. This enables you to:

  • Change the events list to contain more pages using wildcards (*). For example, if you wanted to see the heatmap for the same elements across all blog pages, you could use /blog/*.
  • Change the length of time the heatmap generates from. The default is 7 days.
  • See all the elements in the heatmap and load more.

Once all these settings are set as you prefer, you’ve set up a heatmap for your React app. You can use it to analyze user behavior in your app.
